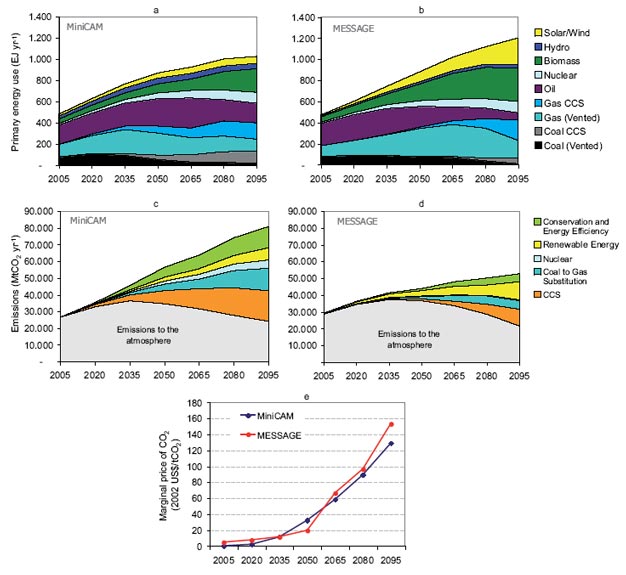

Figure TS.12. Global potential contribution of CCS as part of a mitigation portfolio

These figures are an illustrative example of the global potential contribution of CCS as part of a mitigation portfolio. They are based on two alternative integrated assessment models (MESSAGE and MiniCAM) adopting the same assumptions for the main emissions drivers. The results would vary considerably on regional scales. This example is based on a single scenario and therefore does not convey the full range of uncertainties. Panels a) and b) show global primary energy use, including the deployment of CCS. Panels c) and d) show the global CO2 emissions in grey and corresponding contributions of main emissions reduction measures in colour. Panel e) shows the calculated marginal price of CO2 reductions.

CO2 capture and energy needed

Source: IPCC  Carbon Dioxide Capture and Storage: Technical Summary (2005)
8. Costs and economic potential, p. 43
